单N-MOS

PE2305 SOT23-3L

    PE2305是VDS=-20V,ID=-4.5A,RDS(ON)<45mΩ,@VGS=-4.5V,RDS(ON)<60mΩ,@VGS=-2.5V的P-Channel Enhancement Mode Power MOSFET.
    PE2305提供SOT-23-3L封装.
    The PE2305 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of applications.

    PE2305概述:
        PE2305是VDS=-20V,ID=-4.5A,RDS(ON)<45mΩ,@VGS=-4.5V,RDS(ON)<60mΩ,@VGS=-2.5V的P-Channel Enhancement Mode Power MOSFET.
        PE2305提供SOT-23-3L封装.
        The PE2305 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of applications.

    PE2305特性:

    VDS = -20V, ID = -4.5A
    RDS(ON) < 45mΩ @VGS=-4.5V
    RDS(ON) < 60mΩ @VGS=-2.5V
    High Power and current handing capability
    Lead free product is acquired
    Surface Mount Package

    PE2305应用:

    PWM applications
    Load switch
    Power management

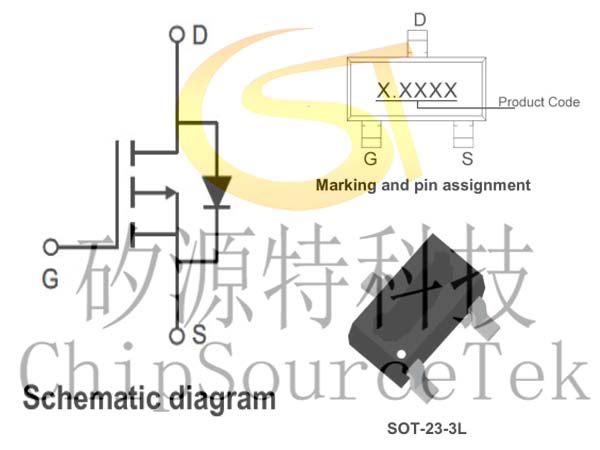

    PE2305典型应用及引脚:
